Install UMAX Astra 3600 Scanner on Windows 7

Long time no blogging...

here I come again, with good news...

Many in forums asking help about driver installation for scanner UMAX ASTRA 3600, an old series of scanner manufactured by UMAX that does not compatible with Windows 7 (yet no idea with Windows 8), as I did, I could not use it and became a trash one at my office. I have got another one, EPSON L200 PRINTER & SCANNER WITH PHOTOCOPIER, so I searched on the web trying to find out the true solution for this sh*t. Then I realize, why shouldn't I try harder?! Then... BANG!!! I've got it!!! I have made it works as on earlier version of Windows!

How could I get no awareness of the very easiest way to do it?! Haha! Guess in my mind went without eager to find out further deeper! Ok, let's cut the crap!!!


Usually, we must install the driver in the first place before using the unit or connect it to the computer, and then, VOILA!!! Windows 7 doesn't compatible with the driver we've tried to install. What a sh*t for more!!! So, I  went for an experiment by myself, what if I connect it in the first place, then see what would appear...
Still...no workout! But, the fact, it's already inside (unit driver) the computer tho' it can't be used. So, what we must do is...


1)  Connect the device (scanner), you'll find a Windows notification that the device driver is not successfully installed, but actually is detected

2)  Click the Start, open Devices and Printers
3)  Point on the troublesome icon of hardware drive, right-click... (click on images to view larger)
UMAX Astra 3600 windows 7

4)  Update the driver

5)  Search manually the driver inside your computer hard disk -choose it!
umax astra 3600 scanner
UMAX Astra 3600 scanner install on windows 7

6)  Click (check sign) the Include Subfolders
7)  When asked about permission, choose to Install this driver software anyway!
install UMAX Astra 3600 on windows 7

8)  Let Windows 7 do the rest of it!

9)  Voila!!! The sh*t got rid!!!
how to install umax 3600 on windows 7
If I knew, it's that easy... this unit wouldn't become trash at my office, thanks to God I don't need to purchase a newer one anymore!!!

If you, Guest, don't have the official driver of this scanner, then you download its driver on the manufacturer's website, and you can choose the standard/default driver -which is intended for Windows XP or earlier, that's ok since mine is also built for Windows XP as well, but I've found out the way to be compatible with Windows 7 - don't you ever ask for how with Windows 8, 'coz I haven't even tried it..!!! Maybe you can try the same method as which works on Windows 7 I've explained above.


Afterward, you can choose to try to operate the function of this scanner with any graphic software; my example is using Adobe Photoshop, by the dropdown menu File, you must choose WIA menu, not the direct scanner driver (TWAIN)...since it still -somehow doesn't compatible with UMAX VISTASCAN 3600, then... sure you can do the rest of configuration for the scan result within Photoshop.

how to install scanner UMAX Astra 3600 on windows 7

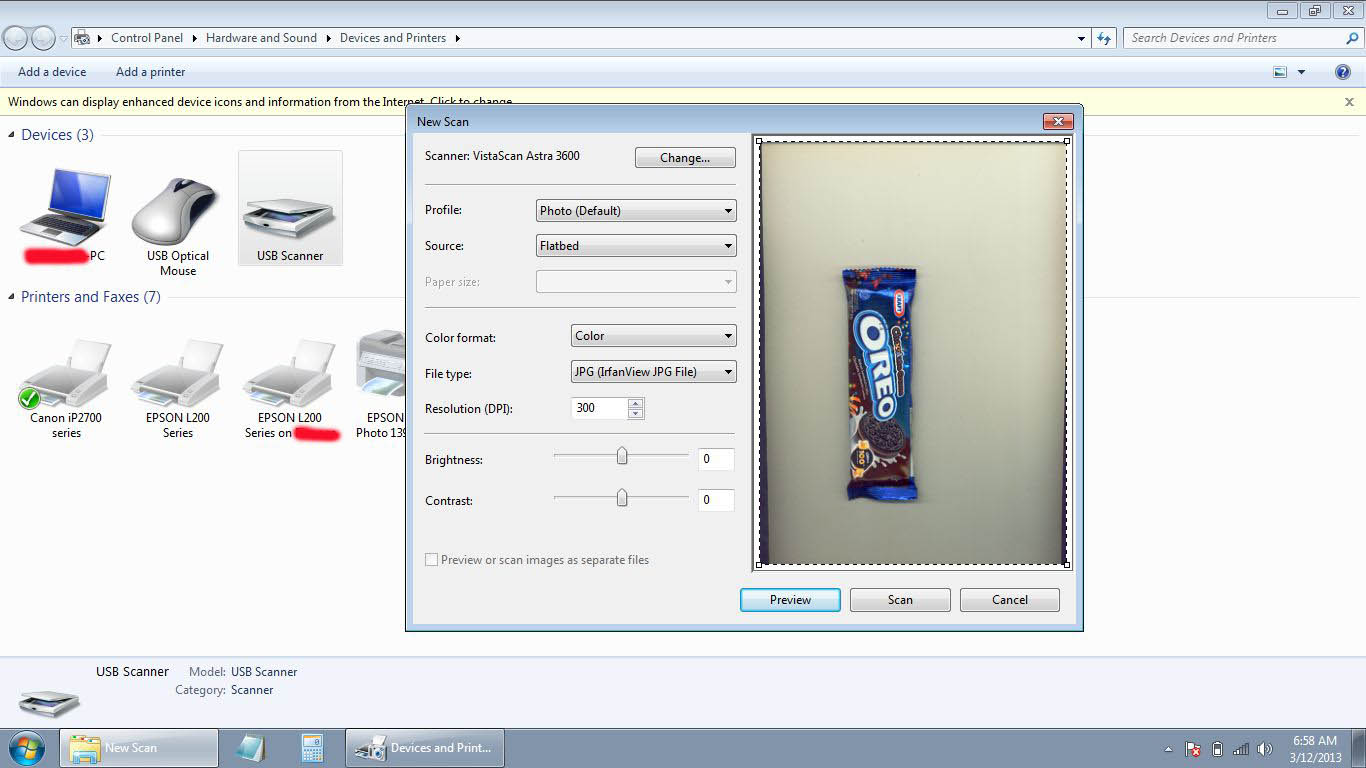

Some or many software that doesn't -still, compatible with the scanner driver, you must use the built-in program/application inside its own machine (within the list of Devices and Printers).
how to install scanner UMAX Astra 3600 on windows 7
Double-click the icon Scanner, then it will appear in the windows menu application... also, sure you can do the rest! By default -when using this built-in application, the scanned result (file) is located on Libraries --> Documents --should you need to search for it and move/copy/relocate it to another hard disk location/directory.

Good luck with your stuff!!! Comments or any other experiences are welcome!!!


*PS: if this method couldn't make it, then you need to reinstall the OS (Win7/8) since your OS is having trouble inside (malware, virus, etc.).

**If you haven't got the installation driver files, freely download  >DRIVER UMAX ASTRA 3600<

Labels: , , , , , , , , ,

39 Comments:

At July 4, 2013 at 10:19 PM , Anonymous Anonymous said...

thank you for ur valuable blog
after hours of frustration , i m able to connect my scanner to win 7
thankyou


At July 4, 2013 at 10:53 PM , Blogger Yanz4ever Multimedia said...

..glad about it :)


At July 7, 2013 at 11:09 AM , Anonymous Anonymous said...

what driver that you used? is it pointing device?


At July 10, 2013 at 3:28 PM , Anonymous Anonymous said...

It doesn't work for windows 8. give me a solution .


At July 11, 2013 at 12:41 PM , Blogger Yanz4ever Multimedia said...

#1: Standard USB Scanner (from UMAX). Other Devices.
#2: I still use 7 Pro (that costed pretty hi for me), so got no plan to move on 8; therefore, i have no idea about working on it for Windows 8. Sorry can't help.


At September 29, 2013 at 1:15 AM , Blogger Unknown said...

Bunddle of Thanks


At October 3, 2013 at 12:19 PM , Anonymous ad said...

your info and knowledge sharing is very valuable, it saves me money and headache. i can't thank u enough. GBU.


At October 6, 2013 at 8:56 PM , Blogger Yanz4ever Multimedia said...

..it's glad to share


At November 1, 2013 at 1:42 PM , Blogger Unknown said...

sorry to say this didnt work on my pc it said couldnot find the drivers


At November 2, 2013 at 8:58 PM , Anonymous Anonymous said...

I installed the driver like this link and it worked! Thanks!

http://umaxforwin78.blogspot.com/2013/11/instruction-for-umax-powerlook-2100xl.html

Phew!


At November 30, 2013 at 2:18 PM , Blogger Yanz4ever Multimedia said...

@Vignesh: u should download the driver at first, here I'm just explaining how-to use the driver so that it works since generally known that the driver only available for earlier version of Windows 7, 8 or Vista - just XP or earlier


At November 30, 2013 at 2:23 PM , Blogger Yanz4ever Multimedia said...

@Vignesh: otherwise u can try downloading such driver the above comment by Anonymous on the link


At December 31, 2013 at 8:48 PM , Anonymous Nagasundaram said...

Thank you very much for your help. By using this method, I have install the driver in Windows8 32 bits os successfully.


At January 1, 2014 at 2:50 AM , Blogger Yanz4ever Multimedia said...

..so, it also worked out for windows 8 x86, thanks in return for your info


At January 31, 2014 at 12:22 PM , Blogger sharique said...

thanks a lot brother.i see many web sites but there is no soloution even microsoft.com
you gr8t


At February 20, 2014 at 5:41 PM , Blogger Yanz4ever Multimedia said...

@sharique: really? mmm.. "experience is the best teacher".. and.. u're most welcome


At March 4, 2014 at 9:51 AM , Blogger sreekumar said...

fantastic.. you are brilliant..Thanks a lot. Windows 8 it can work.. grace the idea...


At March 12, 2014 at 2:07 AM , Blogger Unknown said...

Thanks fantastic.. you are brilliant..Thanks a lot.


At March 18, 2014 at 6:17 PM , Anonymous Anonymous said...

Superb


At August 19, 2014 at 9:34 PM , Blogger Archana said...

thank u very much its really working, u r amazing, thanx


At January 10, 2015 at 11:36 AM , Blogger Suresh Thakor said...

http://softdown-guddu.blogspot.in/2011/06/umax-astra-3600-scanner-driver.html


At August 12, 2015 at 11:00 PM , Blogger Unknown said...

it asks password sir?


At August 14, 2015 at 8:05 PM , Blogger Suresh Thakor said...

https://drive.google.com/file/d/0BwzMwRBRkW7ALWY4R3ctdzBvd2M/view?usp=sharing


At October 25, 2015 at 7:38 AM , Anonymous alat bantu pria said...

hello sir, I am quite happy to give the information already god, thanks


At December 6, 2015 at 10:25 PM , Blogger Kumar said...

HOW TO INSTALL UMAX DRIVER. MY SYSTEM IS NOT RECOGNISED


At December 6, 2015 at 10:27 PM , Blogger Kumar said...

my system is not recognised the Umax astra drivers.I am using windows 7 ultimate 64bit o.s Plz.guide me


At December 15, 2015 at 12:25 PM , Blogger Yanz4ever Multimedia said...

@Umasankar Kumar: have u tried what's on this blog? have u downloaded the driver?


At January 6, 2016 at 8:03 PM , Blogger Kumar said...

dear sir
on that pictures drivers included touchpad\Elantech etc. Such drivers are not present my system. Before installation photoshop software is necessary or not.Presently my scanner not connected. Plz. help me


At January 11, 2016 at 1:12 PM , Blogger Yanz4ever Multimedia said...

sorry just checked in... it won't be matter either to install before or after the photoshop installation, any of it just works, however, for using in photoshop (e.g. already installed) better to restart the photoshop or close the photoshop active window at first when we want to install the scanner driver. In case photoshop can't directly detect the driver while photoshop is active (running) simultaneously with installing the scanner driver. I think any other image processing software can handle the scanner if only taking the scanned objects (e.g. IrfanView, ACDSee, XnView, etc). So at last, U don't have to have a Photoshop if U just want to scan an object.


At January 11, 2016 at 1:14 PM , Blogger Yanz4ever Multimedia said...

..and any other drivers, just focus on the UMAX Astra3600 driver, don't be distracted by those others, no correlation with UMAX


At January 13, 2016 at 9:46 PM , Blogger Kumar said...

Finally I Succeeded . With your support My old Scanner Umax 3600 now it is working.
Thank you very much for your support


At February 26, 2016 at 1:30 AM , Blogger chetan patnekar said...

After following your detailed instructions, I can use also my UMAX 3600 Scanner. Now it is working.

Thank you very much once again.


At July 8, 2016 at 7:04 PM , Blogger Ankur Sengar said...

To all, who are browsing the blog regarding Umax Astra 3600, This technique works only on 32 bit operating systems (Even on Win 10, It's working). But about 64 bit OS, your device is still a garbage.


At September 1, 2016 at 1:41 PM , Blogger MJB said...

Thanks for the solution. It Works!!!
I was thinking to buy new scanner you saved my money :)
Thanks again..


At May 2, 2018 at 10:40 AM , Blogger Arifin jaya said...

mantap gan makasih infonya


At October 14, 2018 at 2:19 AM , Blogger Kumar said...

How to get pdf file with this scanner and continue more pages to scan.


At July 3, 2019 at 1:07 PM , Blogger M Irwan Faisol said...

For Windows 10?


At July 5, 2019 at 4:20 PM , Blogger Yanz4ever Multimedia said...

as earlier comment from Ankur Sengar, its driver isn't designed for x64 (64 bit) version of Windows, if your Win 10 is the x86 (32bit) then you can still make it useful, however Windows 10 in major is released on 64bit so that this UMAX scanner can't be used. But... check your version of Win 10 then you can see whether you have 32bit (you can use your UMAX) otherwise, 64bit, you need to use another scanner.


At December 7, 2021 at 11:55 AM , Blogger Arifin jaya said...

Thank you very much for your help. By using this method, I have install the driver in Windows8 32 bits os successfully.
